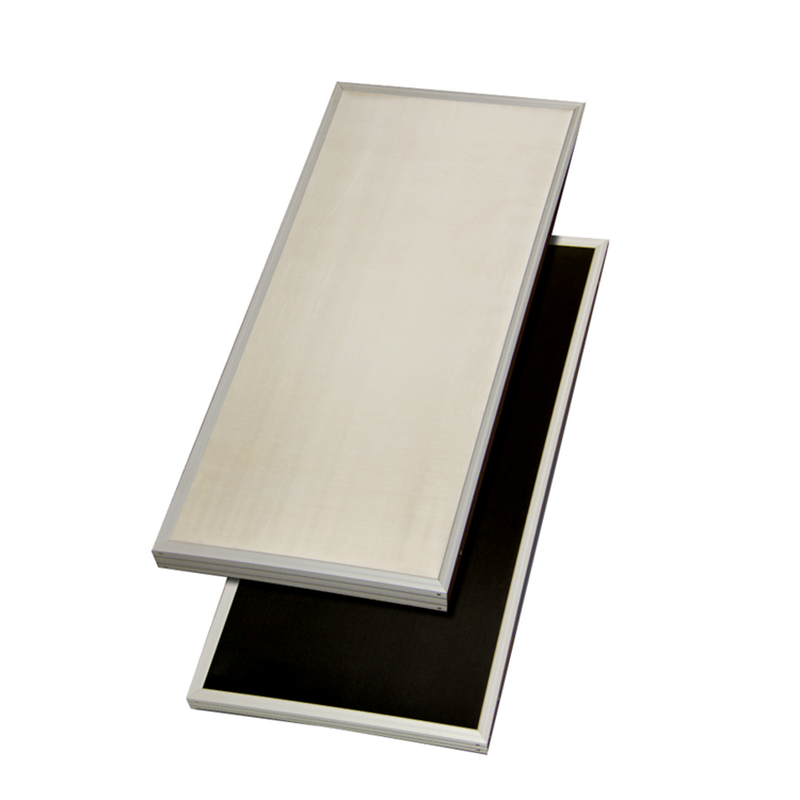

Ceiling Baffle

Ceiling Baffle is made of quality glass fiber and aluminum frame. It is covered with glass fiber cloth/ acoustic fabric according to different acoustic and decoration demands. There are different kinds of frame patterns, colors, and shapes for decorative design. It is suitable for the opening ceiling system, which needs a high sound absorption coefficient and creative arrangement design.

Product Details

Specification

Product Type	Ceiling Baffle
Standard Model	AFC-50, AFC-100
Basic Material	Fiberglass+ aluminum frame
Finish	Fabric
Frame	Aluminum frame
Color	White, black, or customized
Size	Width 600 or 800mm ×Length 1200 or 2400mm (Allowable tolerance: length +-2mm; wide:+-1mm)
Thickness	50, 100mm (Allowable tolerance: +- 1 mm)
Fireproof Grade	A grade as per EN13501-1
Formaldehyde emission level	E1
Acoustic data	NRC＞1
Application place	Classroom, office, gymnasium, auditorium, multi-function hall, conference room, lecture hall, recording studio, cinema, home theater, etc.

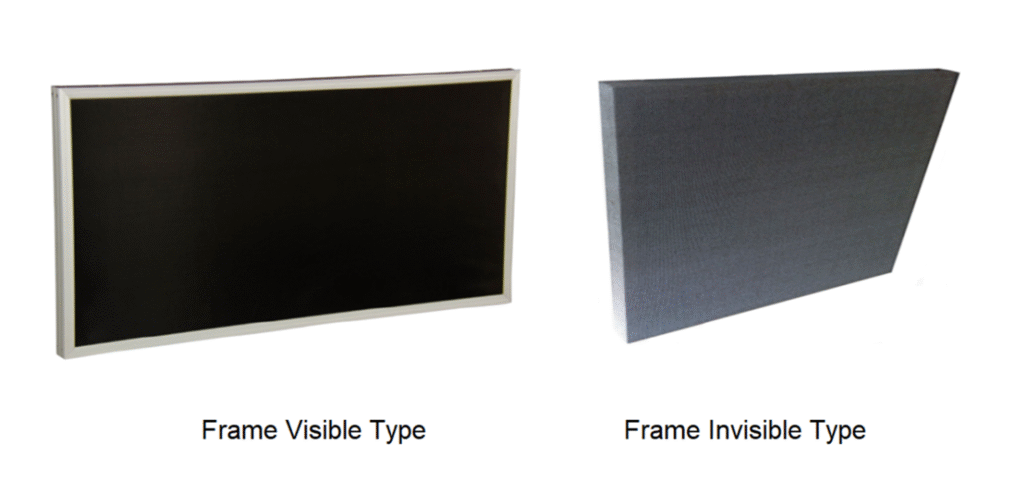

Frame

Aluminum frame (visible or invisible)

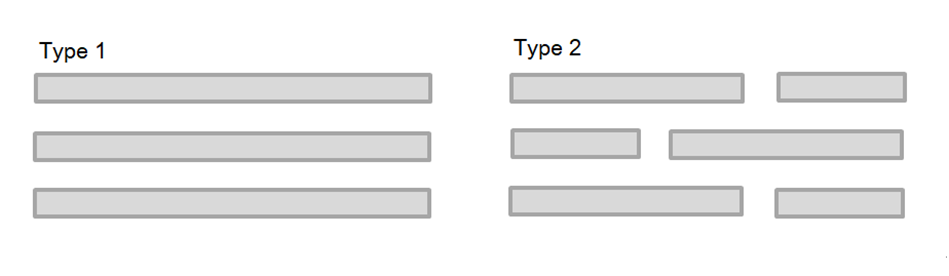

Combination Pattern (ceiling view)

Vertical hanging

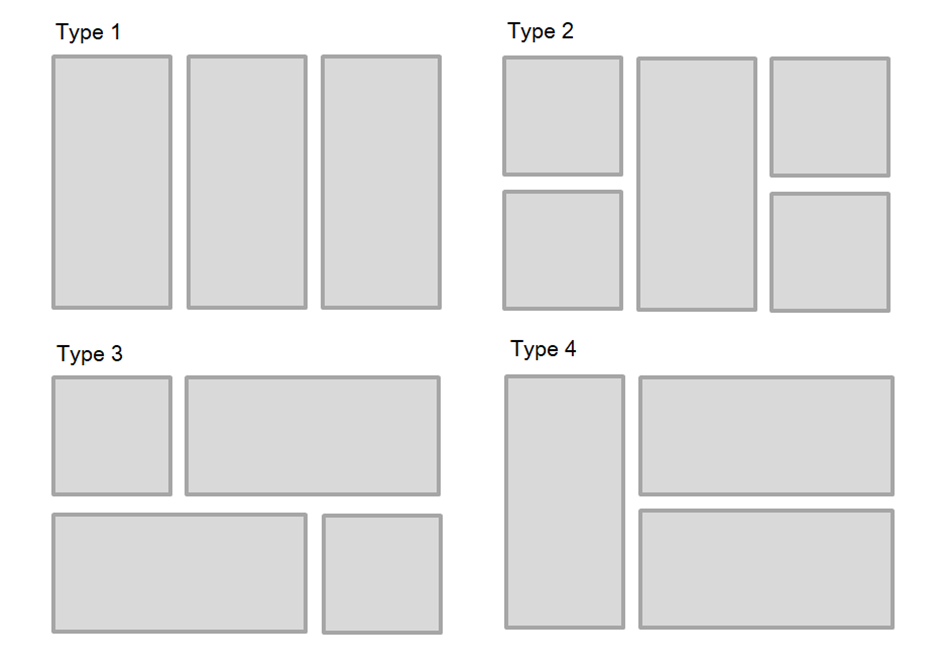

Horizontal hanging

Other models

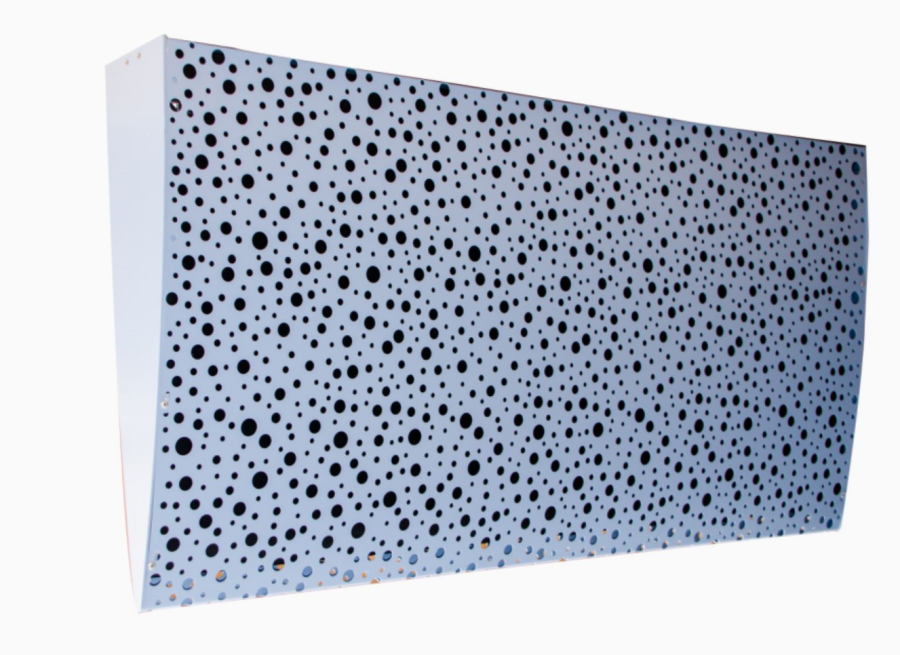

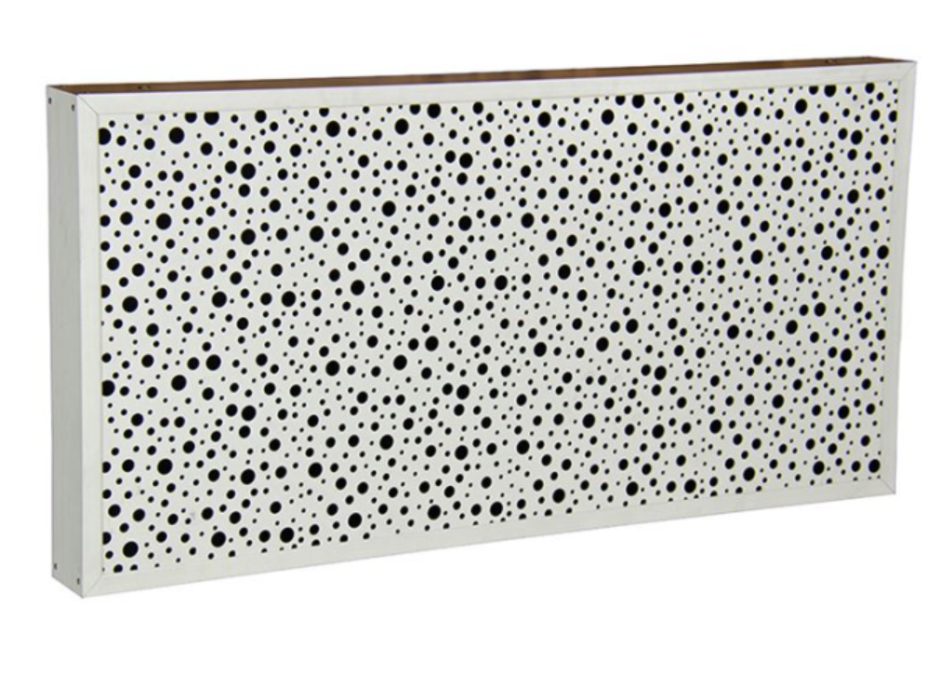

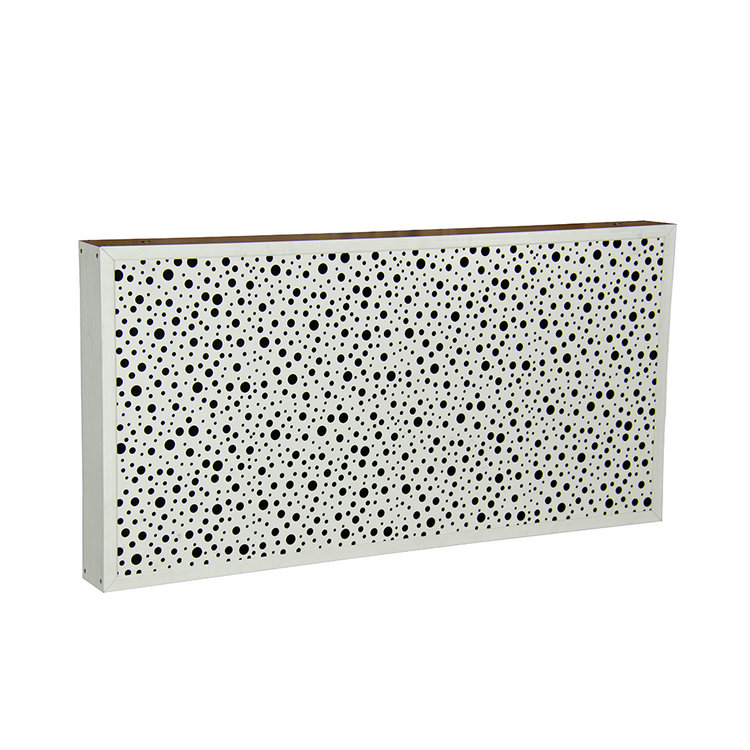

Irregular perforated acoustic ceiling cloud

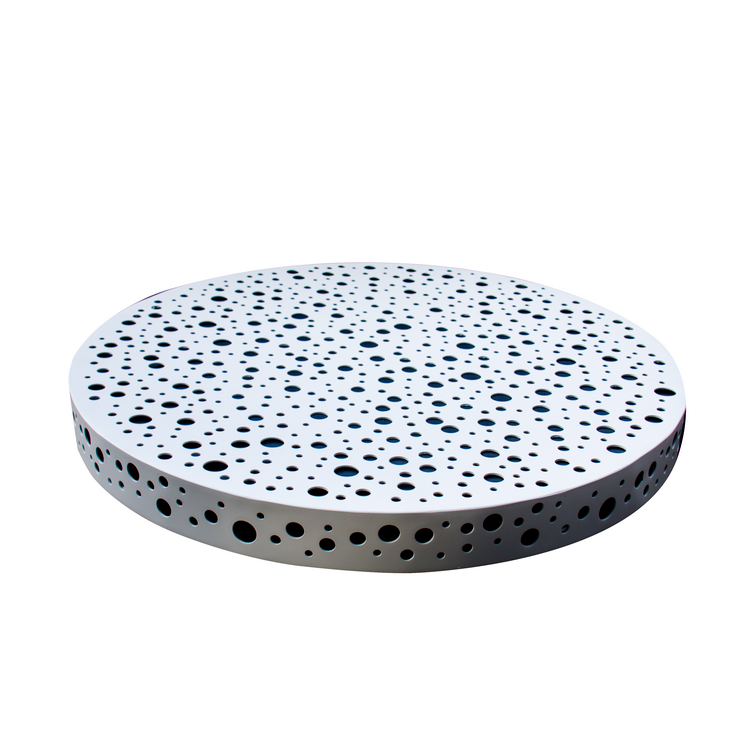

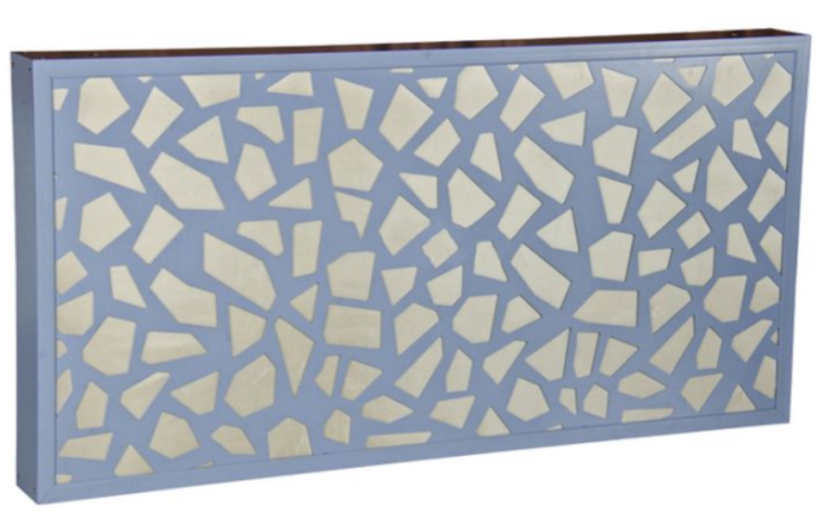

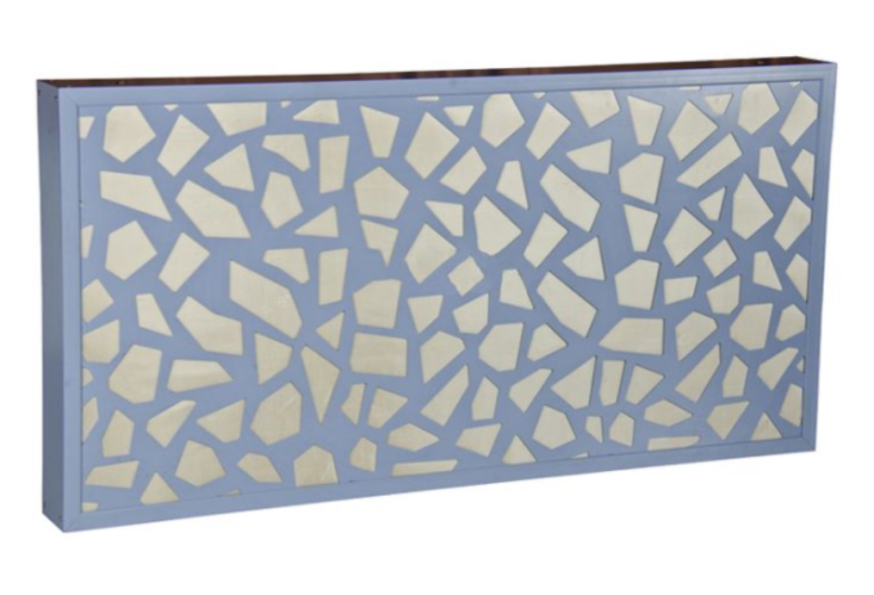

Stone pattern acoustic ceiling cloud

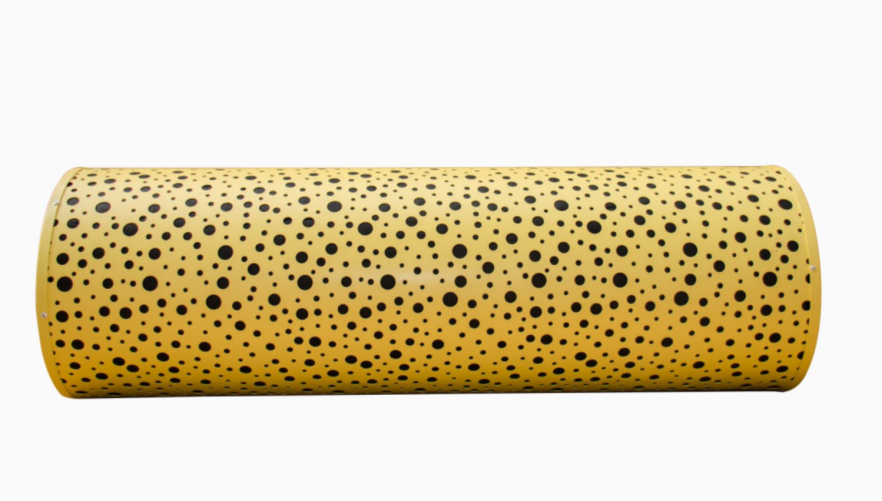

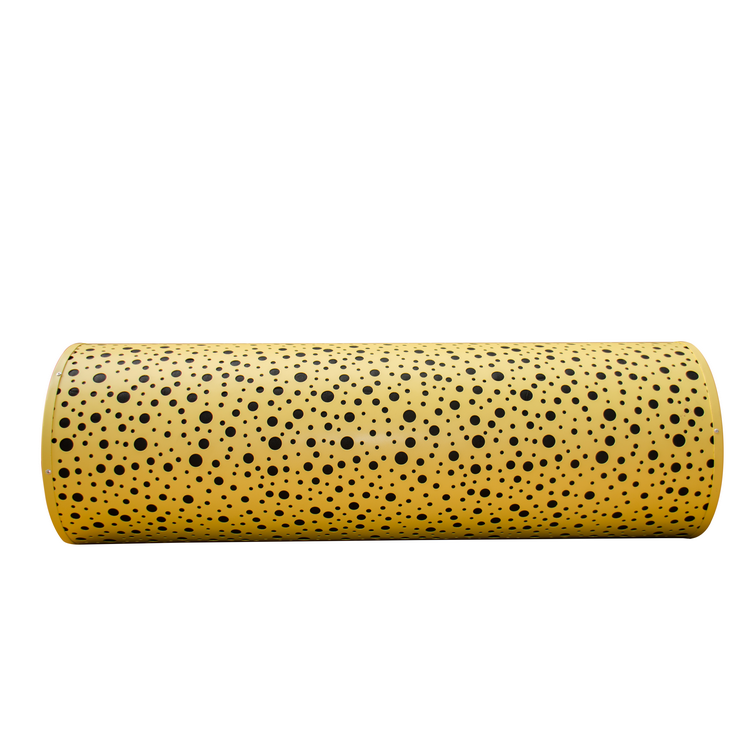

Cylindrical acoustic ceiling cloud

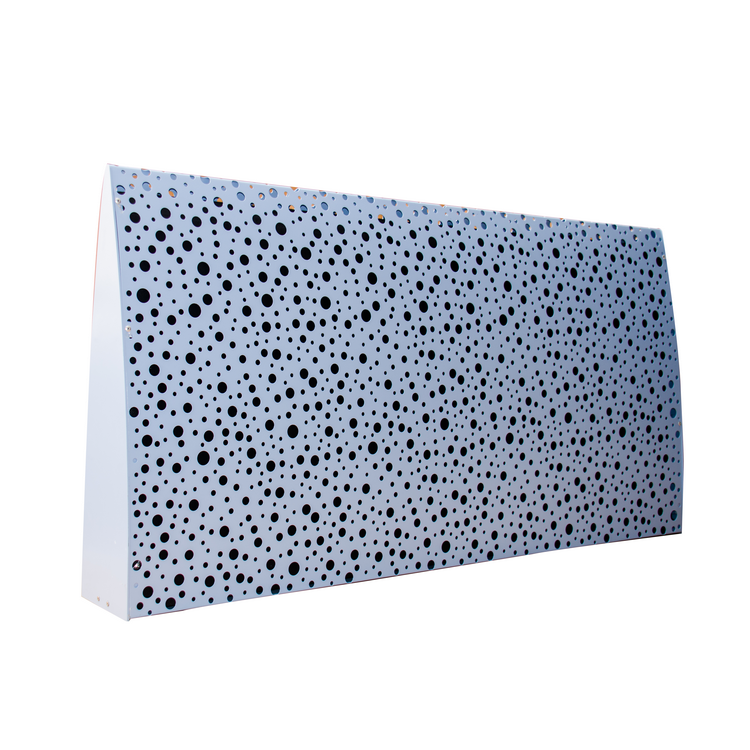

Wedge acoustic ceiling cloud

Advantage

Now available in rectangle, cylinder, wedge and many customizedshapes
360° panel finishing capability available
Aesthetically define spaces with excellent acoustical performance-up to 1.0 (NRC)
Quick to install from the deck, drywall, suspension system, or on a wall in adjustable heights and angles
Grouping frame kit provides superior rigidity, perfect alignment, minimizes hanging points, ensures consistent panel spacing
The surface pattern is according to the customer’s requirements

Application place

Classroom, office, gymnasium, auditorium, multi-function hall, conference room, lecture hall, recording studio, cinema, home theater, etc.
