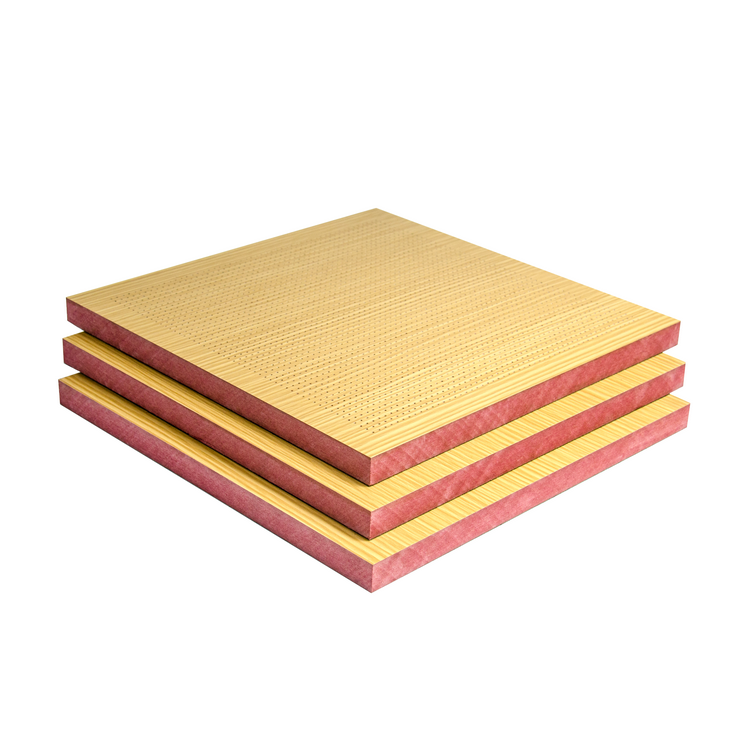

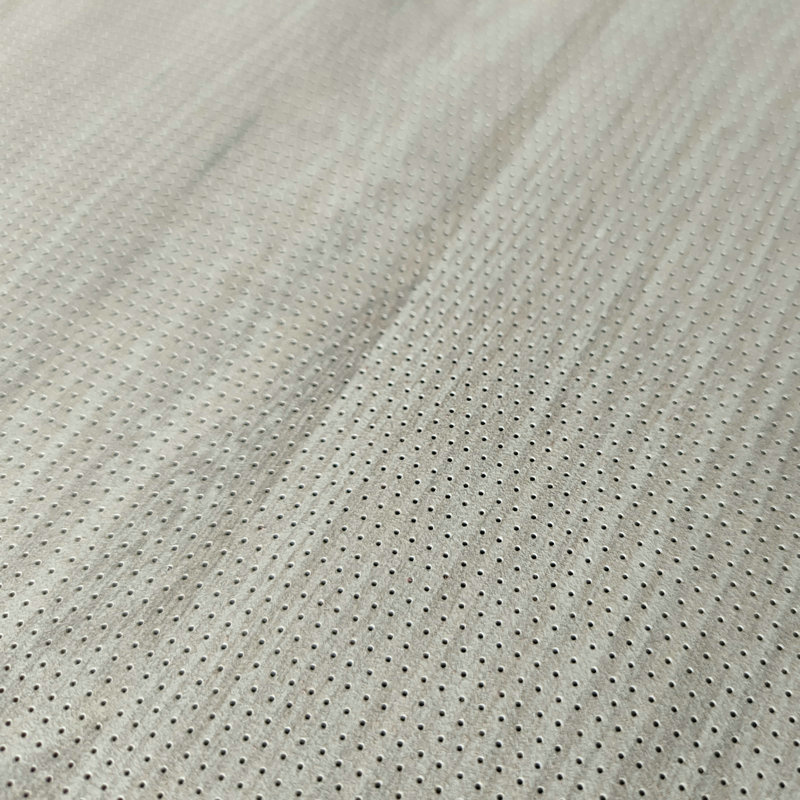

Micro Perforated Acoustic Panel is a kind of resonance absorption material with micro perforation.

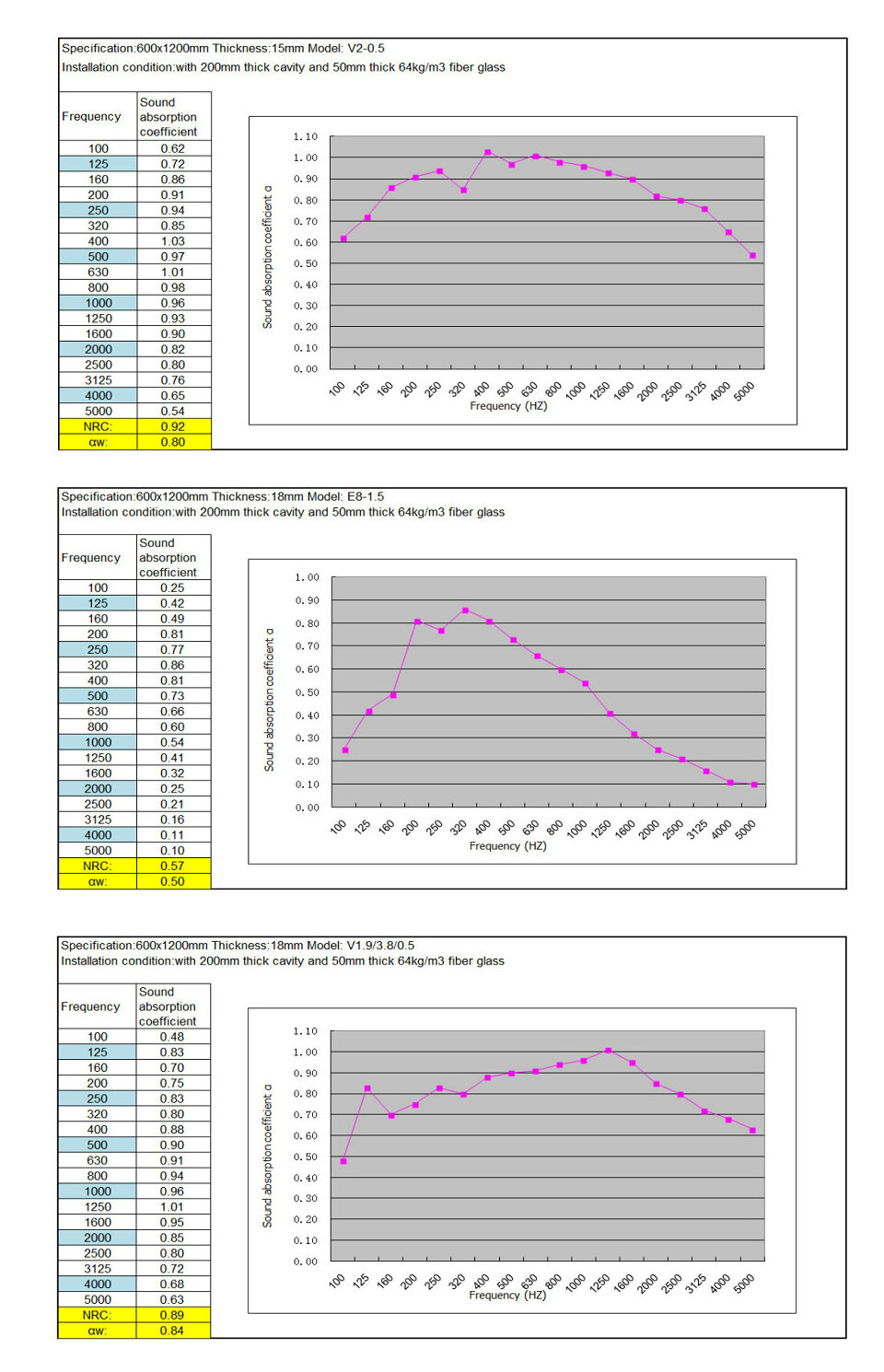

It has good sound absorption performance of low frequencies. If we fill a proper amount of sound-absorbing fiber into the cavity of the sound-absorbing structure, the sound absorption effect of middle and high frequency can be enhanced.

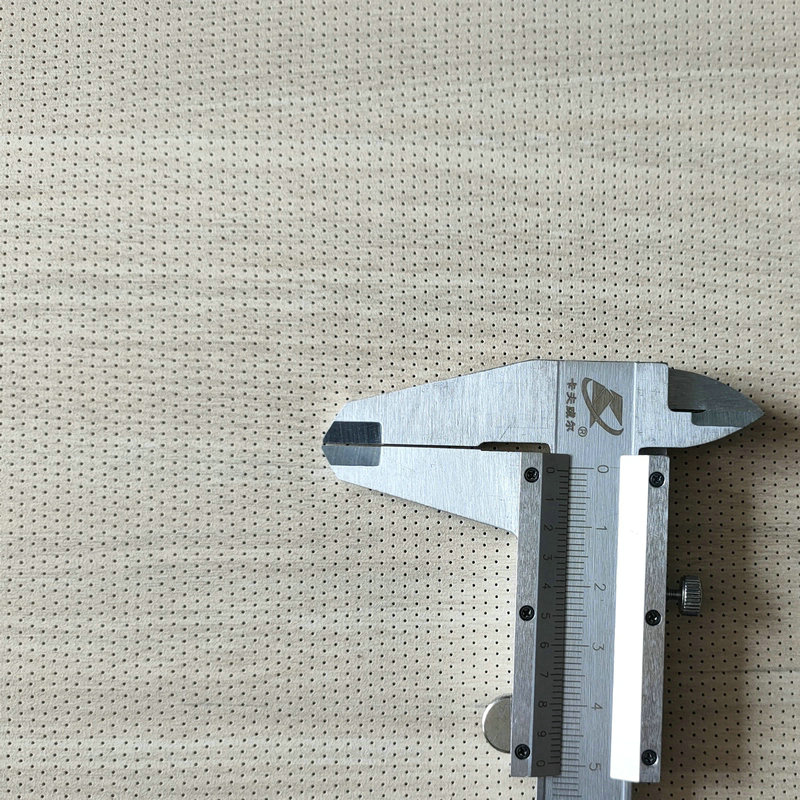

The diameter and spacing of holes can be adjusted according to acoustic and decorative requirements.
| Product Type | Micro Perforated Acoustic Panel |
| Product structure | Perforated on board, with sound-absorbing black fireproof felt behind |

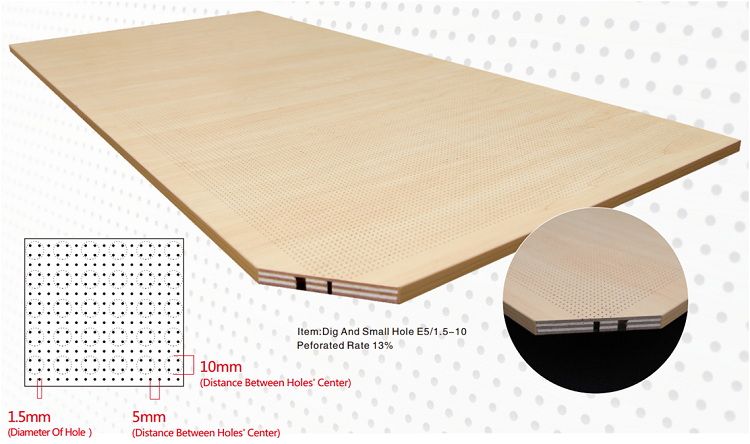

| Standard Model | E5/1, E8/8/1, V8/8/1, V3.6/1.8/0.5, V2/2/0.5 (with 10mm diameter holes on the back side) |

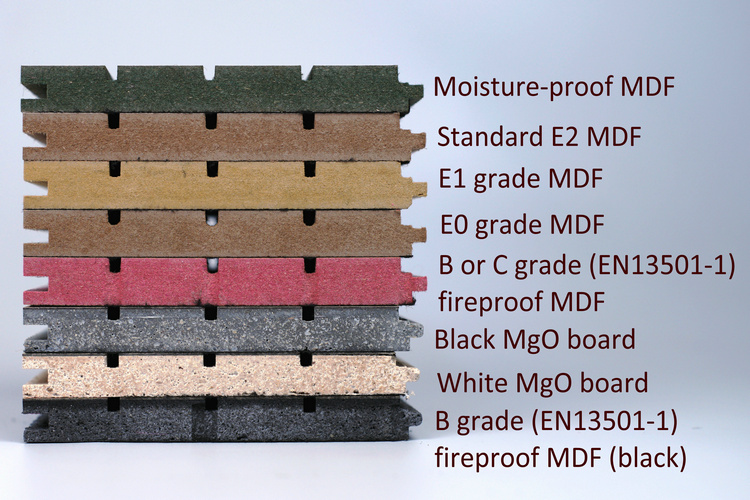

| Basic Material | Moisture-proof MDF, Standard E2 MDF, E1 grade MDF, E0 grade MDF, B or C grade (EN13501-1) fireproof MDF, Black MgO board, White MgO board, B grade (EN13501-1) fireproof MDF (black) etc. |
| Finish | Melamine/Technical Veneer/Natural Veneer/HPL /PU painting/UV painting etc. |
| Color | Color chart or customized |
| Size | Width 600 or 1200 ×Length 600 or 1200 or 2400 (Allowable tolerance: length +-2mm;wide:+-1mm) |
| Thickness | 12mm / 15mm / 18mm(Allowable tolerance:+-0.2mm) |
| Fireproof Grade | According to the base material |
1.Suitable for distribution, have popular models for stock
2.Good shock resistance
3.Easy cleaning, just wipe with soft cloth
4.Very small holes that keep the finish pattern intact
5.Good absorption in low frequency
Multi-function hall, opera house, meeting room, cinema, auditorium, hotel, television station, concert hall, piano room, gymnasium, villa, or place with strict acoustic requirements in home life.
